Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-

Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-
Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-
Informations de base
Lieu d'origine: Ningbo Chine
Nom de marque: TianDi
Certification: CE,ISO
Numéro de modèle: Le nombre d'heures de travail est le suivant:
Quantité de commande min: 20pcs
Prix: negotiable
Détails d'emballage: Emballé dans des cartons, puis des palettes en bois.
Délai de livraison: 15 jours de travail
Conditions de paiement: T / T, Western Union, L / C
Capacité d'approvisionnement: 2000pcs par mois
meilleur prix Contactez
Moteur: C.A. 380 V 0,75 KW Réservoir: 6L
Pompe: 2.1cc / r Port de pétrole: M14x1.5
Tension de soupape: AC220V Type de montage: horizontal
Mettre en évidence:

Hydraulic power unit with AC380V motor

,

Dock leveler hydraulic gear pump

,

High pressure hydraulic pump 2.1cc/R

Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R-

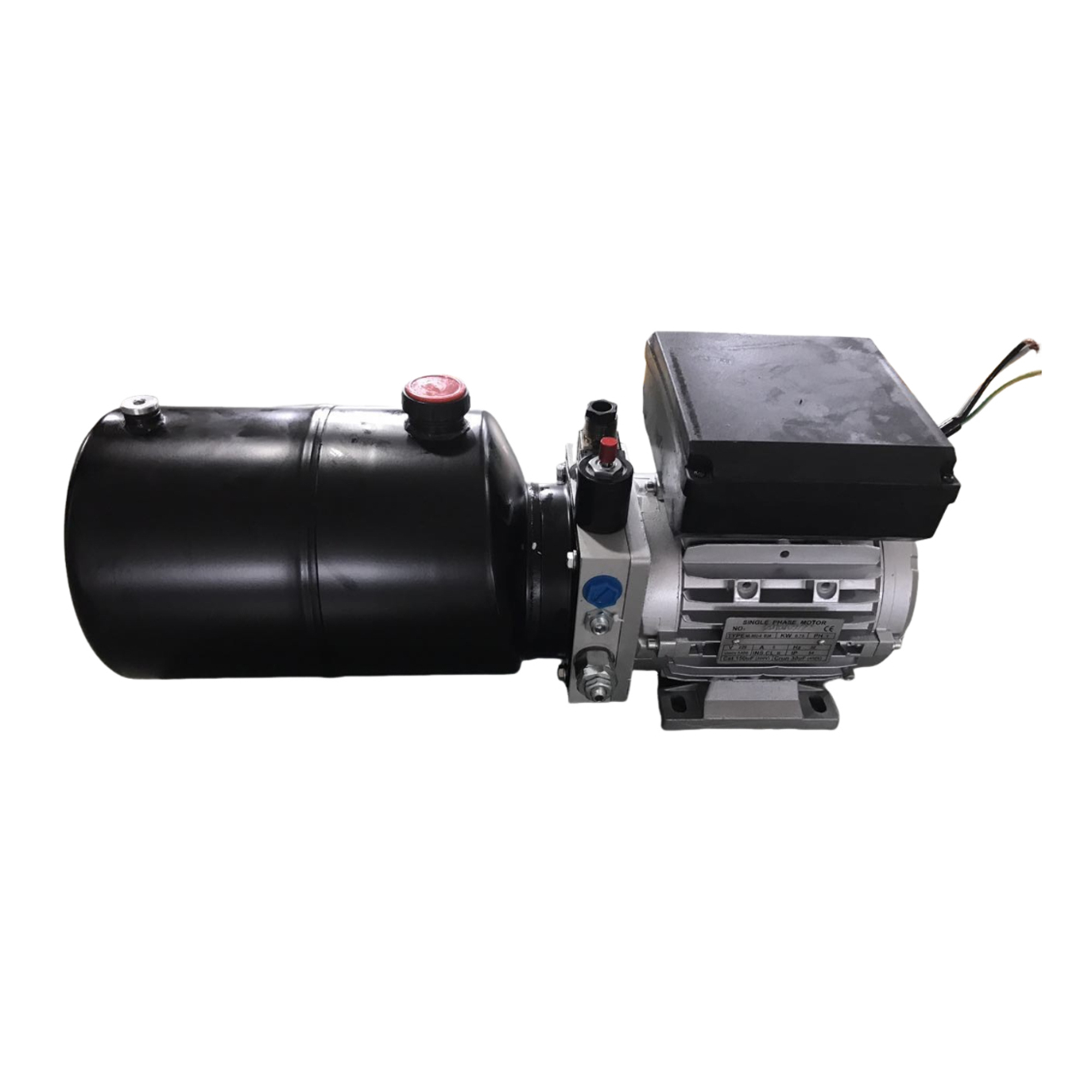

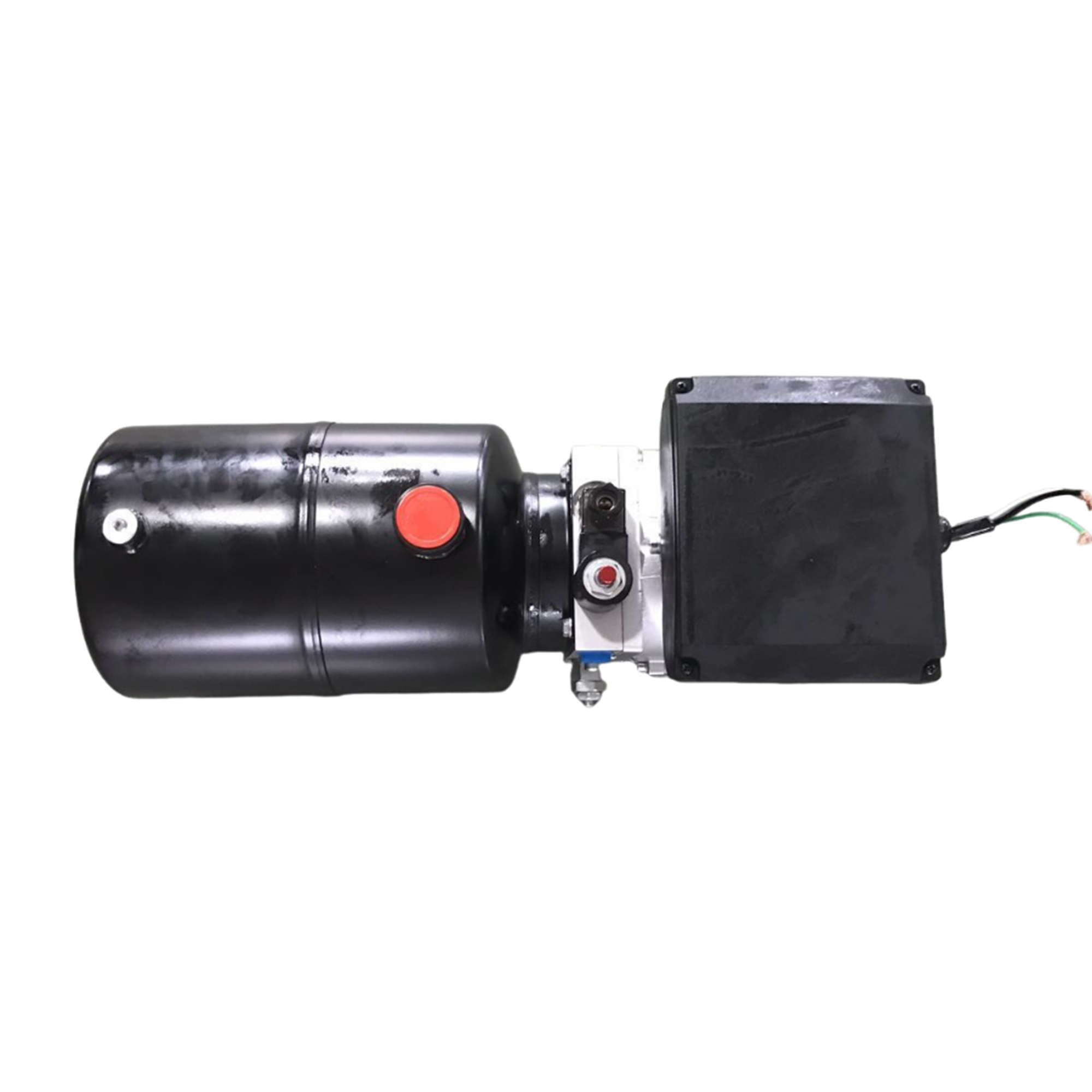

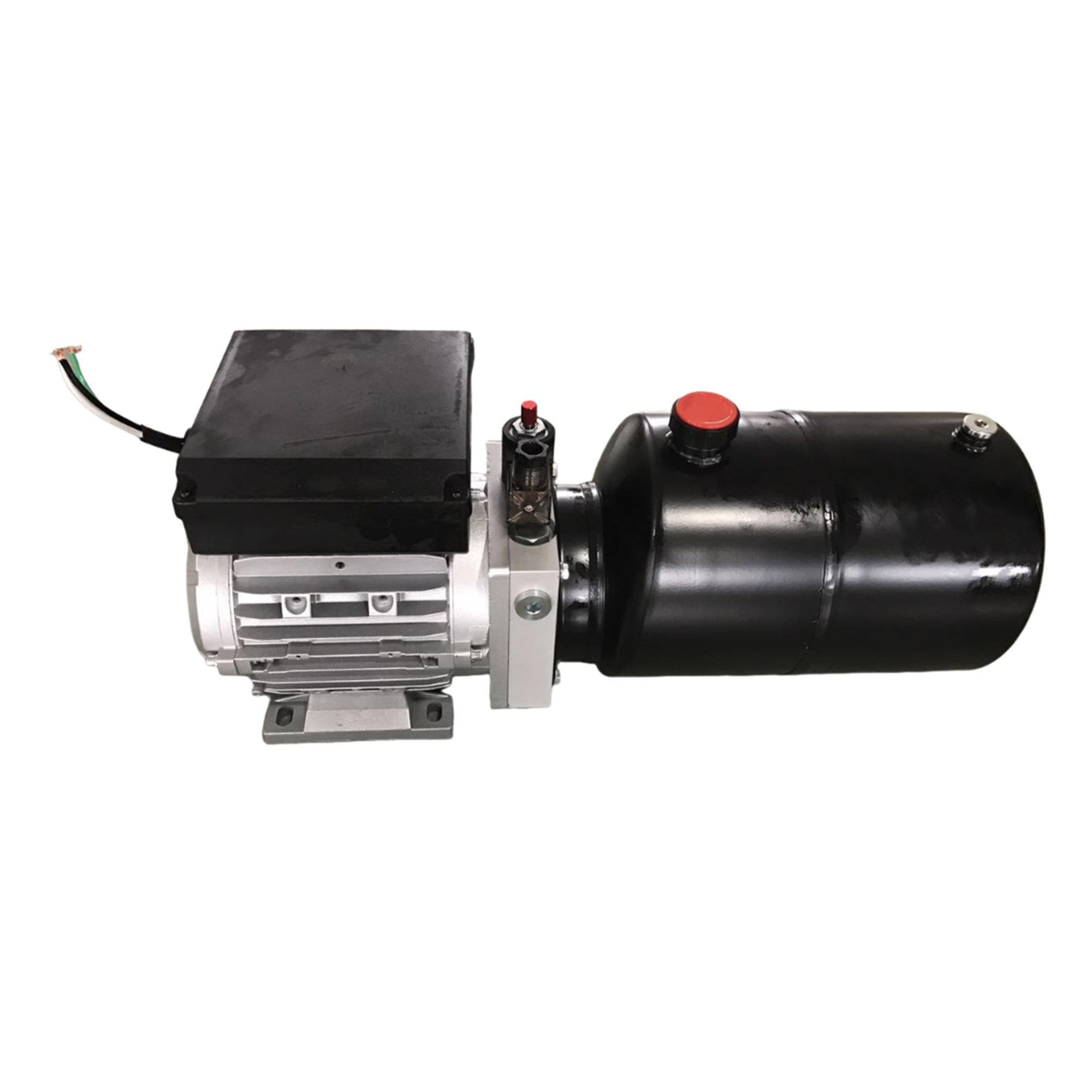

AC380V 0.75KW motor 2.1cc/r gear pump with 6L steel tank Hydraulic Power Unit
Basic Specification

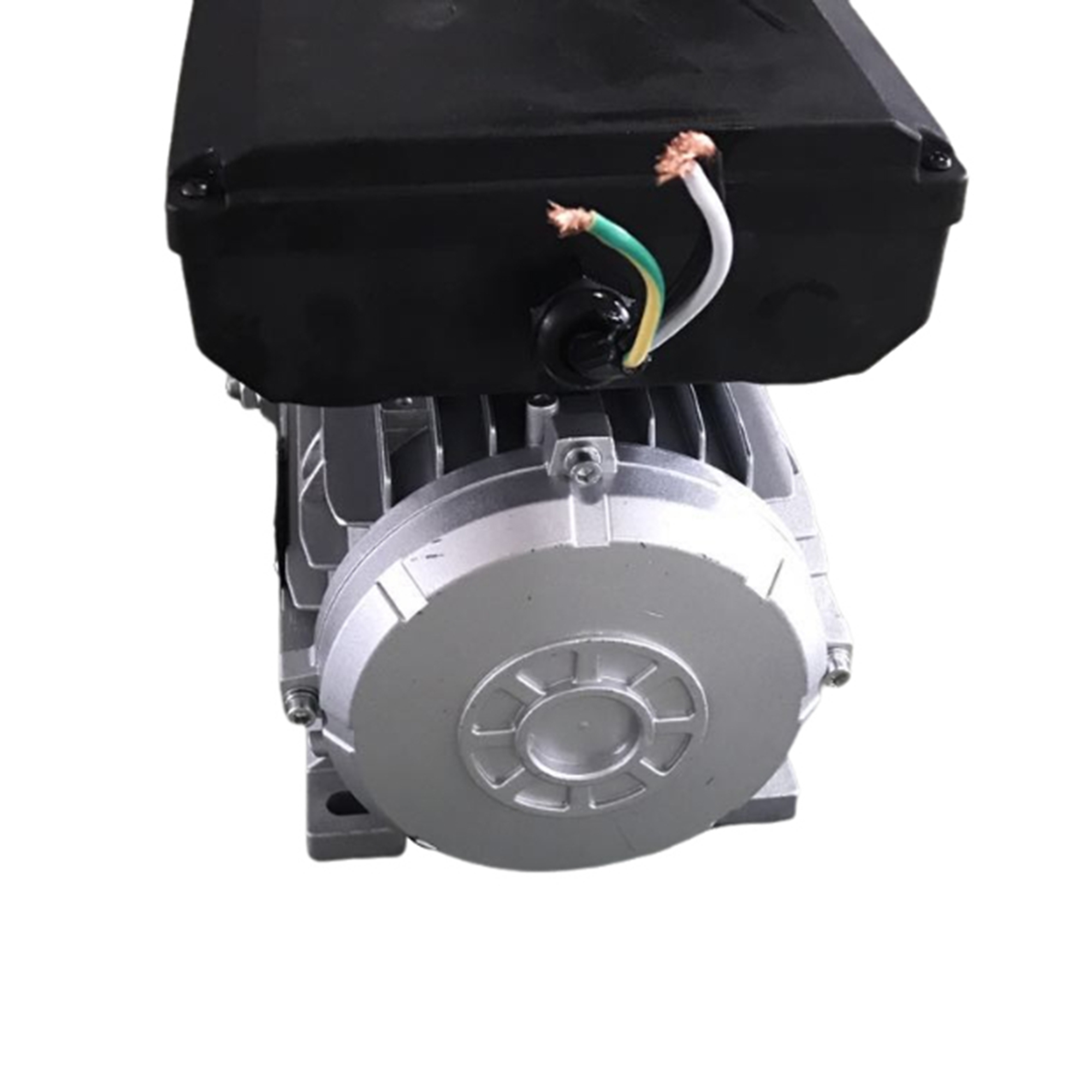

Motor AC380V 750W 1450RPM
Oil Pump 2.1cc/r
Oil Port M14X1.5
Tank Size 6L
Valve Voltage AC220V
Mounting Type Horizontal
Commercial Terms
Minimum Order Quantity: 50pcs
Price: USD198/set
Payment Terms: T/T
Supply Ability 2800 pcs per month
Delivery Time: 25 working days after advance payment received
Packaging Details: Packed in carton boxes, and then wooden pallets
Drawing
Hydraulic Power Unit Dock Leveler Hydraulic High Pressure Gear Pump AC380V 0.75KW Motor 2.1cc/R- 0
Description
  • Components: This power pack is powered up and down. It consists of a high pressure gear pump, an AC motor, an aluminum center manifold, valves and a hydraulic oil tank.
  • How to Work: Push "up" button to start the motor to lift the Trailer, and the solenoid release valve activates the lowering movement.
  • Applications: It is specially designed and widely used in dock leveler applications.
